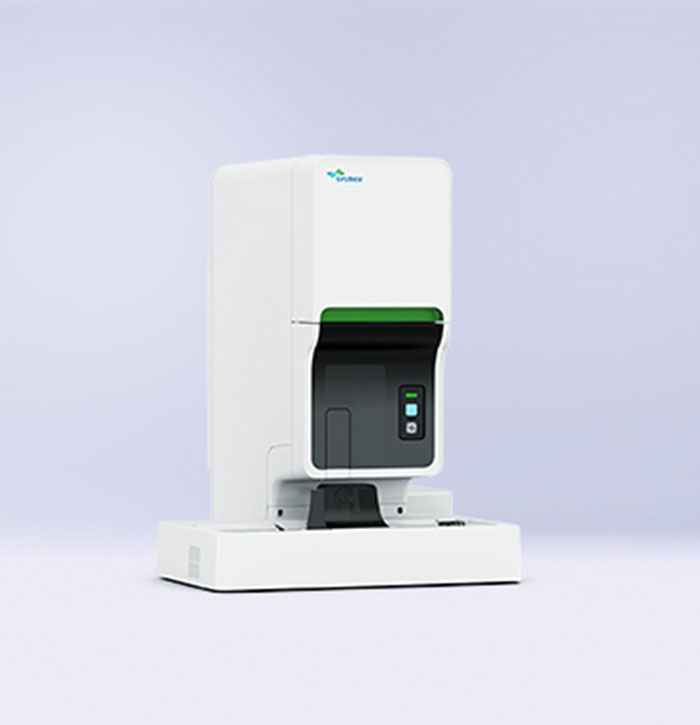

XN-1000

Add to wishlist
Category:

First step into full automation: Fully automated 5-part differential haematology analyser. This is a standalone, benchtop instrument including a sampler with Rerun & Reflex functionality. You can further equip our flagship analyser with diagnostic applications as needed.

XN-1000

  • Hourly throughput of up to 100 samples

  • Onboard decision rules with user-defined rerun/reflex capabilities

  • Customisable diagnostic applications to cater to variable clinical needs

  • Optional integration of slide maker & stainer

  • Available as bench top system or floor-type (with wagon)

Registered Under Act 737 (IVDB17531114618)

With its small footprint, the XN-1000 standalone offers reproducible result quality in the shortest possible time. Built with an automated re-run/reflex capability, it significantly reduces manual interventions and frees up time and resources. Fitted with all the available diagnostic applications, the XN-1000 is a powerhouse in small footprint

Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed impedance
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume 88 µL in whole blood (WB) mode and body fluid (BF) mode
Throughput up to 100 samples/h
Quality control material XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF, IPF#
  • With WPC (optional)
    Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
  • XN Stem Cells licence
    HPC%, HPC#
  • Body Fluids with XN-BF
    WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF# (optional)
Configurations
  • XN-1000 [DIFF]
  • XN-1000 [WPC]
Features & Benefits

With its small footprint, the XN-1000 standalone offers reproducible result quality in the shortest possible time. Built with an automated re-run/reflex capability, it significantly reduces manual interventions and frees up time and resources. Fitted with all the available diagnostic applications, the XN-1000 is a powerhouse in small footprint

Specifications
Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed impedance
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume 88 µL in whole blood (WB) mode and body fluid (BF) mode
Throughput up to 100 samples/h
Quality control material XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF, IPF#
  • With WPC (optional)
    Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
  • XN Stem Cells licence
    HPC%, HPC#
  • Body Fluids with XN-BF
    WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF# (optional)
Configurations
  • XN-1000 [DIFF]
  • XN-1000 [WPC]
